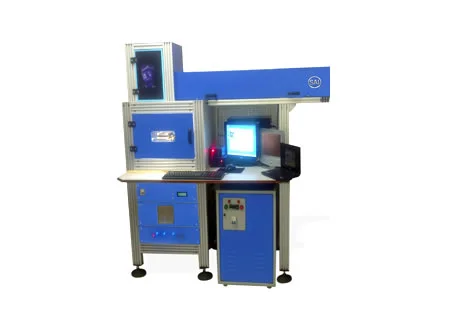

Diode Laser Sawing Machine

Excellent Laser Stability Ideal For Sawing High Quality Stones

• Lower Breakage Ratio
• Minimum Weight Loss
• Higher Throughput
• Power Saving Of Minimum 70% Compared To Lamp Pumped System
• Very Low Operating Cost As Consumables Not Required Like Lamp, Flo Tube
• High Precision X-Y-Z Axis
• No External Chiller Required

Model No.: DGS-IR12

Technical specifications

Laser

• Laser Type : Diode Pumped Solid State Nd YAG PulsedWavelength : 1064 nm
• Power : 16 W @ TEMoo QS
• Popularization : Linear
• Stability : 15 µrad

Cnc

• Type : X-Y Table With Vertical Z Axis
• Travel Range : 150 x 150 mm ( X-Y Axis ), 75mm (ZAxis)
• Max. Speed : 100 mm/Sec
• Accuracy : 2 Micron

Mechanical

• Dimensions (L × W × H):1650 × 865 × 1650 mm
• Weight : Approx. 400 Kg

Environment

• Room temperature : 24° c ± 1° c
• Humidity : Around 40%
